The ECH-D cold water pump is applicable to household water supply, equipment support, pipeline pressurization, garden watering, vegetable greenhouse watering, fish farming and poultry raising, industrial and mining, water supply and drainage in high-rise buildings, and central air conditioner systems.

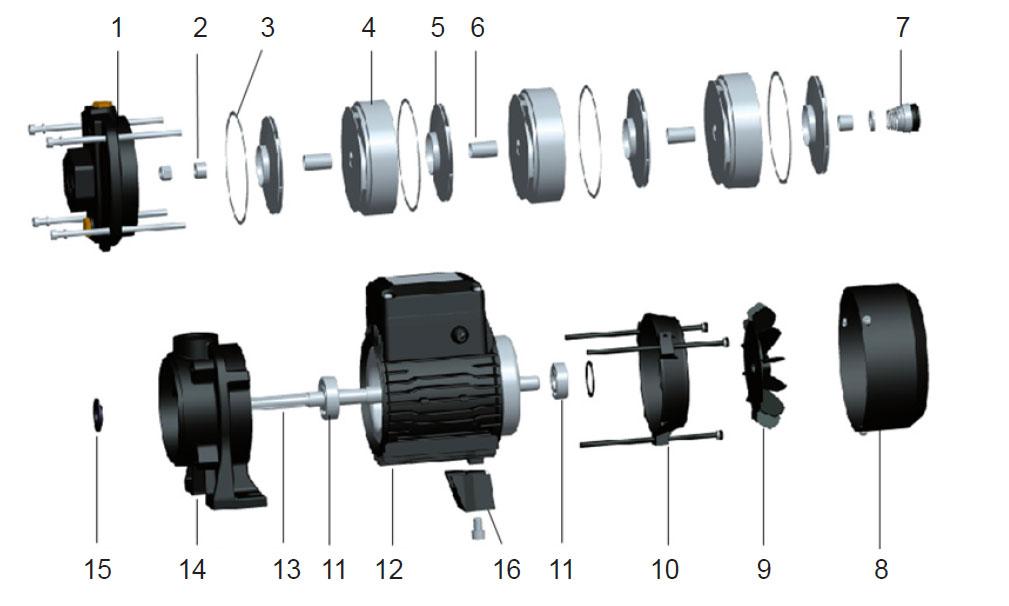

| No | Part | Material |
|---|---|---|
| 1 | Pump body | Cast iron |
| 2 | Shaft end sleeve | AISI304 |
| 3 | Snap ring | PTFE |
| 4 | Diffuser | AISI304 |
| 5 | Impeller | AISI304 |
| 6 | Sleeve | AISI304 |
| 7 | Mechanical Seal | Ceramic/Silicon carbide |
| 8 | Fan cover | 08F |
| 9 | Fan | PP |
| 10 | Rear cover | ZL102 |
| 11 | Bearing | |
| 12 | Stator | |
| 13 | Rotor | |
| 14 | Outlet body | Cast iron |
| 15 | Collar | PTFE |
| 16 | Support | PTFE |
LEO is a listed company in China (stock code 002131), LEO is a leading horizontal centrifugal pump manufacturer only offers high quality pumps. LEO has made millions of pumps now used in more than 140 countries. LEO stainless steel water pumps can meet you any requires in commercial pumping systems.
