SW Submersible Sewage Pump

Application

  • Used in pressure sewage systems
  • Waste water drainage from individual residences, apartment buildings, recreational developments, models
  • Transferring wastewater from commercial buildings, industrial plants, wastewater sampling, small hospitals.
  • Wastewater drainage in schools and parks
  • Transfer various wastewater and sewage .

SW Submersible Sewage Pump
  • Flexible installations with hoses, pipes or quick-coupling systems
  • Stainless shell welded shaft
Working Conditions
  • Water density: 1x 103 kg/m3
  • Liquid temperature: 0 - 40 °C
  • Liquid PH value: 4 - 10
  • Max. Immersion depth: 5 m
SW Submersible Sewage Pump Motor Features
  • Motor with copper winding
  • Insulation class: F
  • Protection class: IPX8
  • Voltage: 380V/50Hz
  • Mechanical seal: Double-end mechanical seals

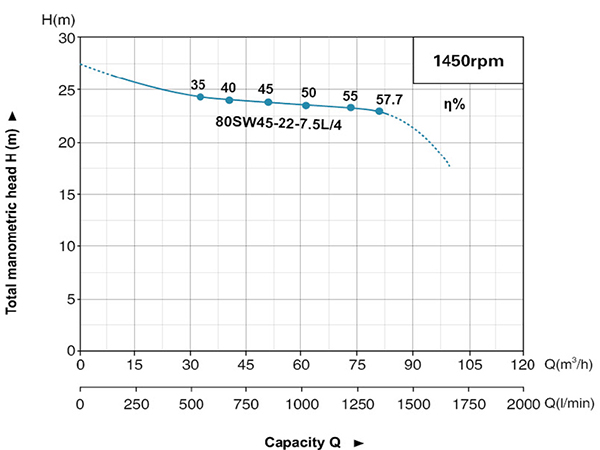

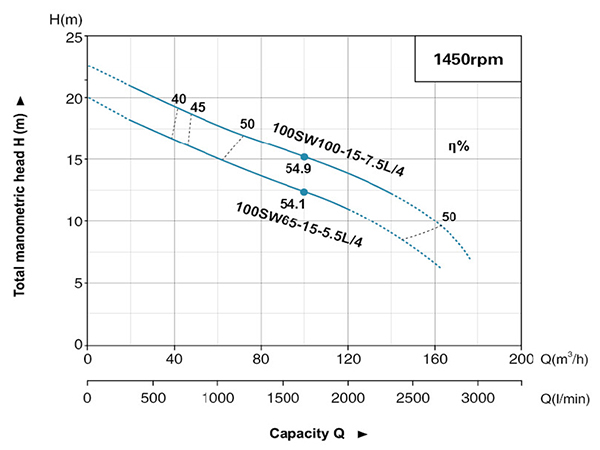

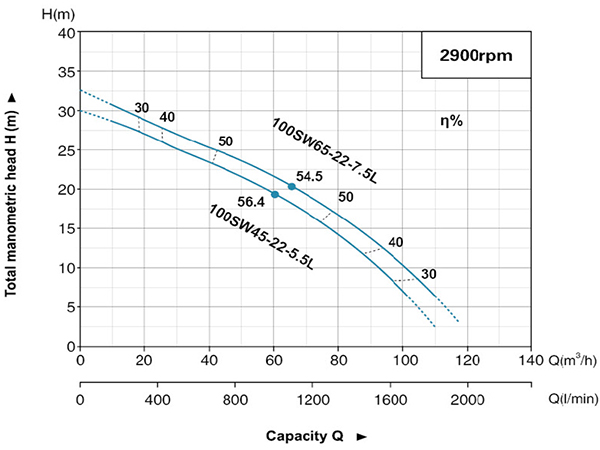

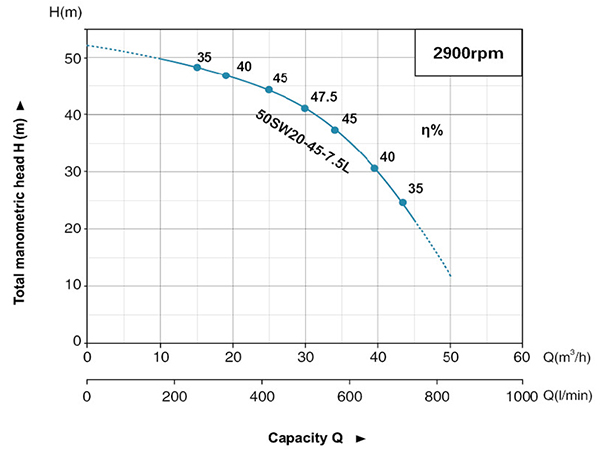

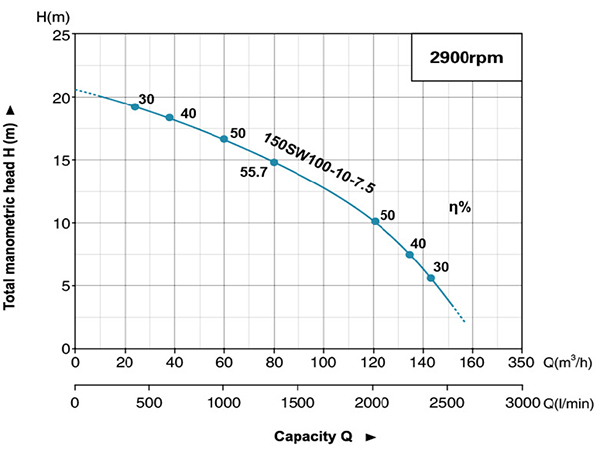

Hydraulic Performance Curves

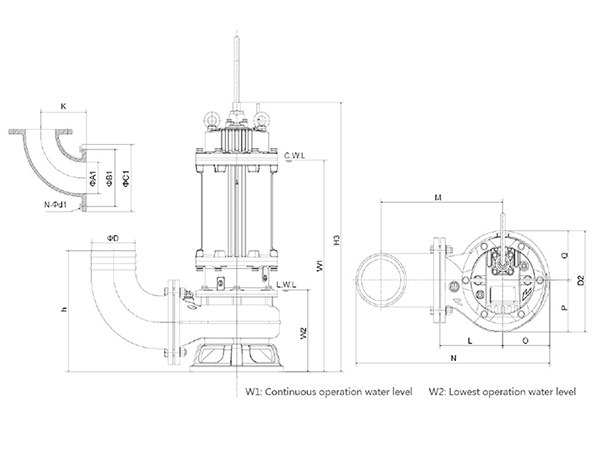

Dimension

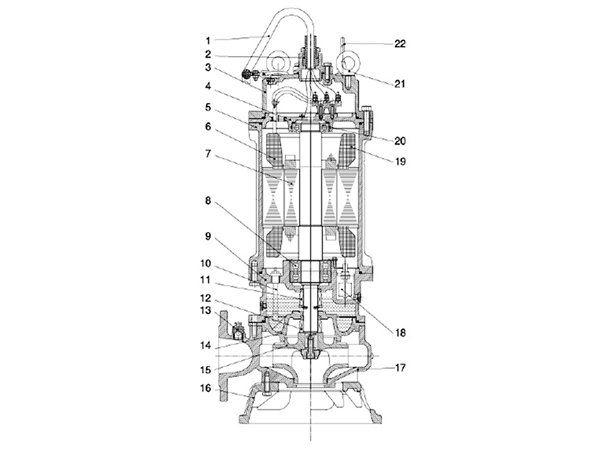

No. Part Material
1 Cable
2 Cable holder HT200
3 Upper cover HT200
4 Upper bearing seat HT200
5 Frame HT200
6 Stator
7 Rotor
8 Bearing
9 Oil chamber HT200
10 Detector
11 Mechanical seal Silicon/Carbon
12 Mechanical seal Silicon/Carbon
13 Release valve
14 Pump casing HT200
15 Impeller HT200
16 Baseplate HT200
17 Pump body HT200
18 Floating switch
19 Thermal sensor
20 Bearing
21 Ring 06Cr19Ni10
22 Signal cable
